ZIO1X010 MINiBOX 0-10V X1

Zennio ZIO1X010 MINiBOX 0-10V X1

EAN: 8411080789099

Bus System: KNX (TP)

Degree of protection: IP20

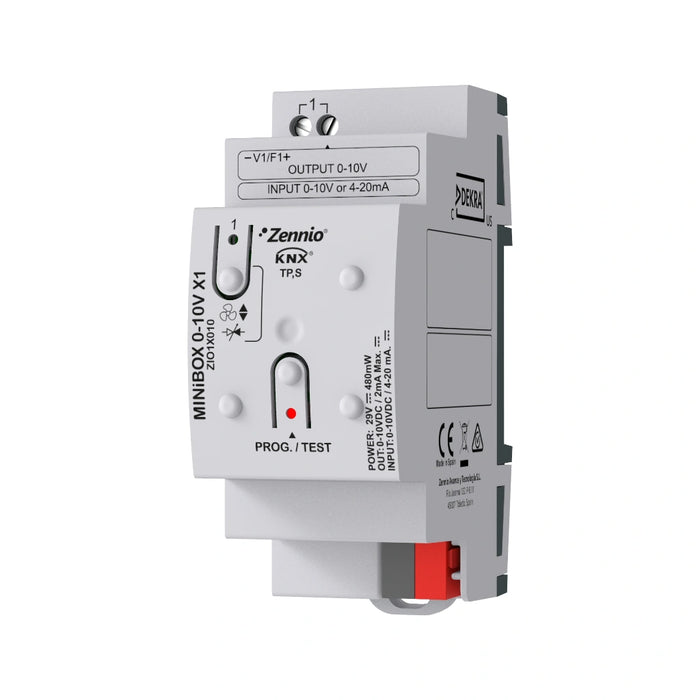

DIN rail mounting module (width 2 DIN) with 1 channel configurable as 0-10 V output, 0-10 V input or 4-20 mA input. Includes a fan coil module for installations where either the valve or the fan is controlled by a 0-10 V signal and the rest is controlled by an external device.

Manual control is possible using a button and the channel status is displayed using an LED indicator.

It contains 10 logic functions and 1 thermostat.

Link to manufacturer information
