9025 Capacitive switch KNX - RGB RANGE - 10-channel with replaceable symbols

The package contains both the front and back parts (controller + glass)

Ability to light up custom and replaceable icons corresponding to the assigned function.

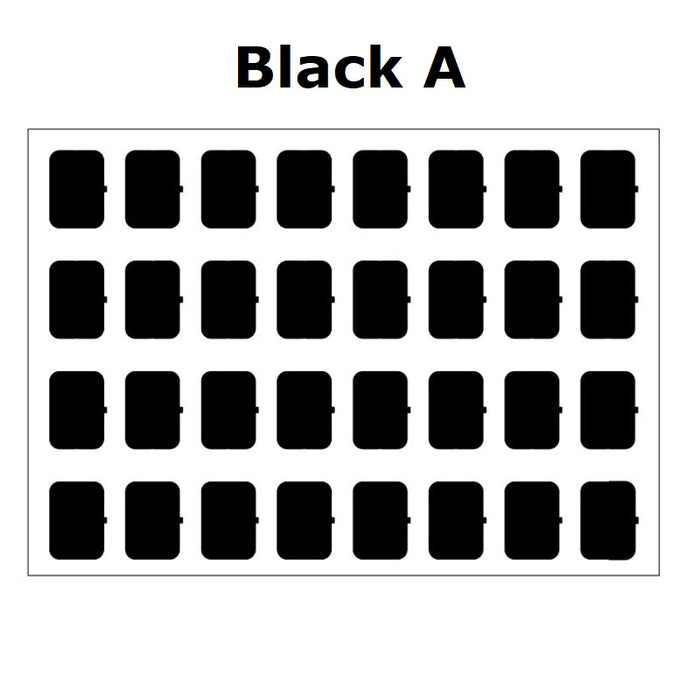

Unused channels are blinded with empty symbols from set A. Easy replacement in case of control change.

Each button can be configured to manage on/off commands, dimming, blind control, scene recall and control, object sequences, etc.; The device includes a 2-stage room temperature controller with integrated PI for controlling heating and cooling devices, valves, 2- and 4-pipe fan coils; etc. The device has a built-in temperature sensor and a rear 2-pole connector configurable as a digital or analog input; It is possible to connect an additional NTC temperature probe (electronic codes TS01A01ACC or TS01B01ACC - not included) for direct temperature measurement. The device is equipped with a KNX communication interface.

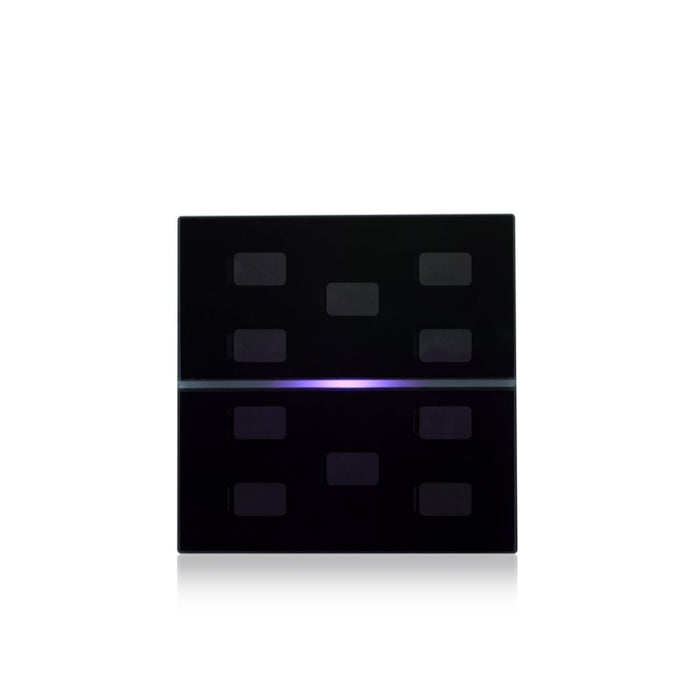

The RGB LED bar on the front side enables the visualization of feedback or other values available via the KNX bus.

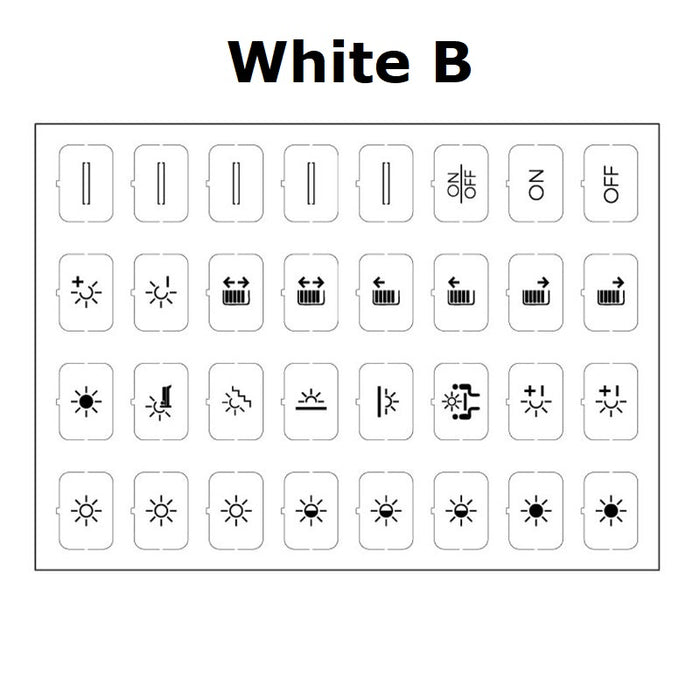

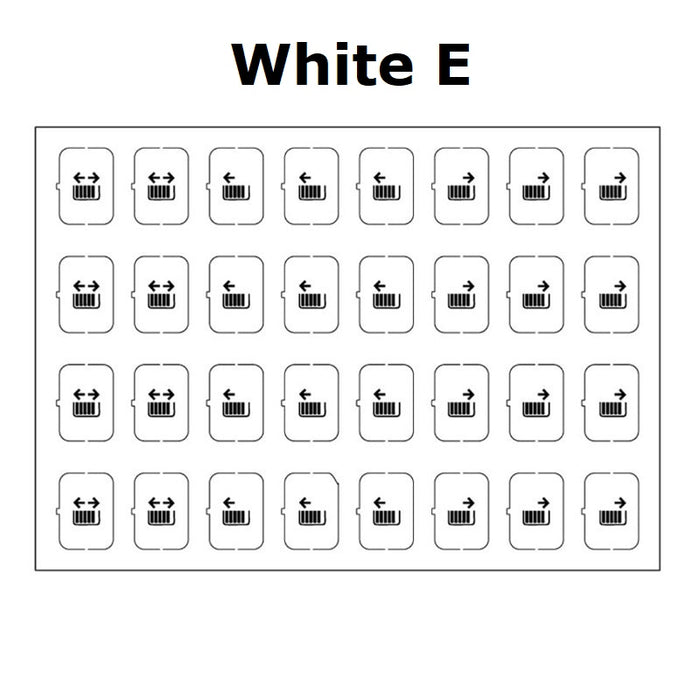

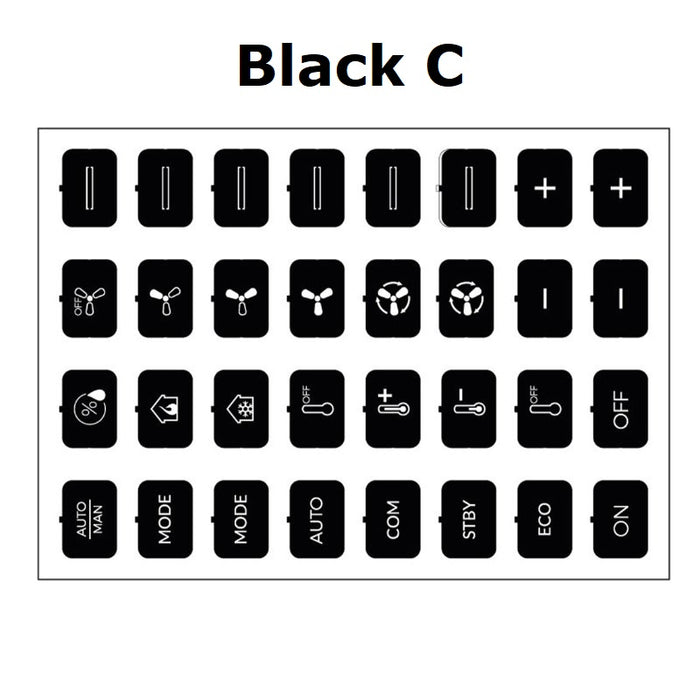

When buying symbols, specify the types of sets you want in the notes when ordering! 1 set contains 32 symbols.

Installation in a two-module box that complies with the main standards (British, German, Italian, etc.).

Marking
- front part: white 9025GL10D01, black 9025GL10D03

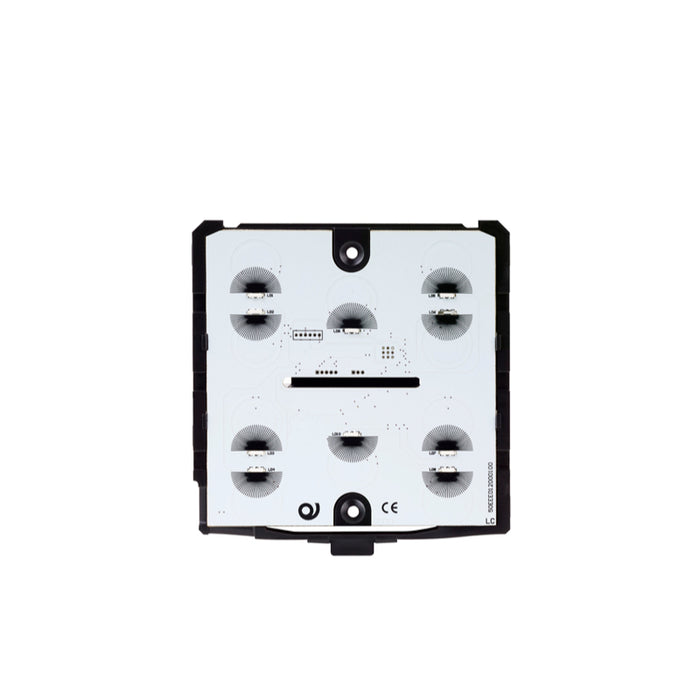

- back part: white CS10A01KNX-1, black CS10A01KNX-3

Link to manufacturer information

The price and the possibility to purchase a product from the eelectron brand will be displayed after logging in.

Estimated delivery time: 2-4 weeks (depends on quantity, please contact us for more details)
