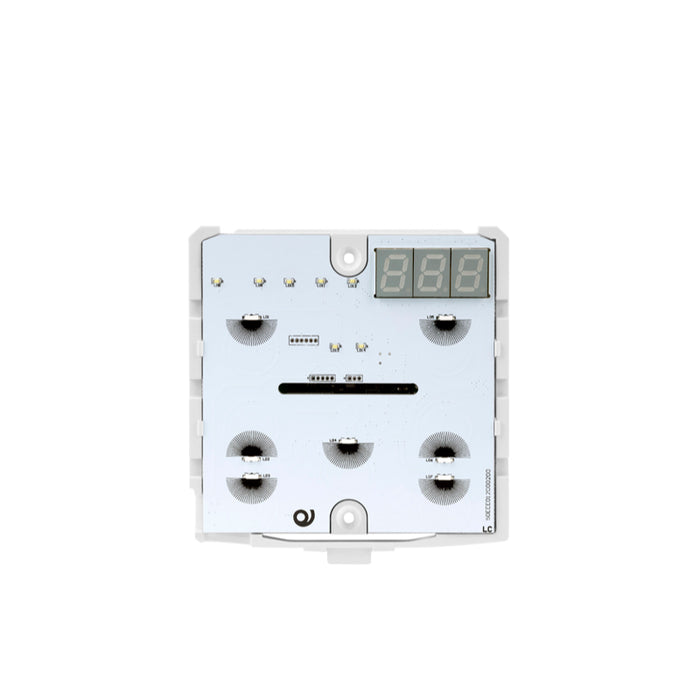

9025 Capacitive thermostat, KNX switch - LINE SERIES, 3 modules - 7 buttons - R
Type: Residential version
The package contains both the front and back parts (controller + glass)
Thermostat 9025 is a KNX® room temperature controller that includes 7 configurable capacitive buttons for on/off, dimming, rolling shutters, scene recall and control, object sequences, local thermostat control, etc. The device offers a 2-stage thermostat with an integrated PI controller for controlling heating and cooling devices, valves, 2- and 4-pipe fan coils, etc.. The device has a built-in temperature sensor and a rear 2-pole connector, configurable as a digital or analog input; An additional NTC temperature probe can be connected for direct temperature measurement (eelectron codes TS01A01ACC or TS01B01ACC - not included in delivery). The 9025 series has an RGB LED strip on the front to visualize the operating modes of the thermostat or feedback and other values available via the KNX bus. Mounted in a 3-module box and compliant with the main standards (British, German, Italian, etc.). The device is equipped with a KNX communication interface.
white: RT07A01KNX-1-3M + 9025GT307L01-R
