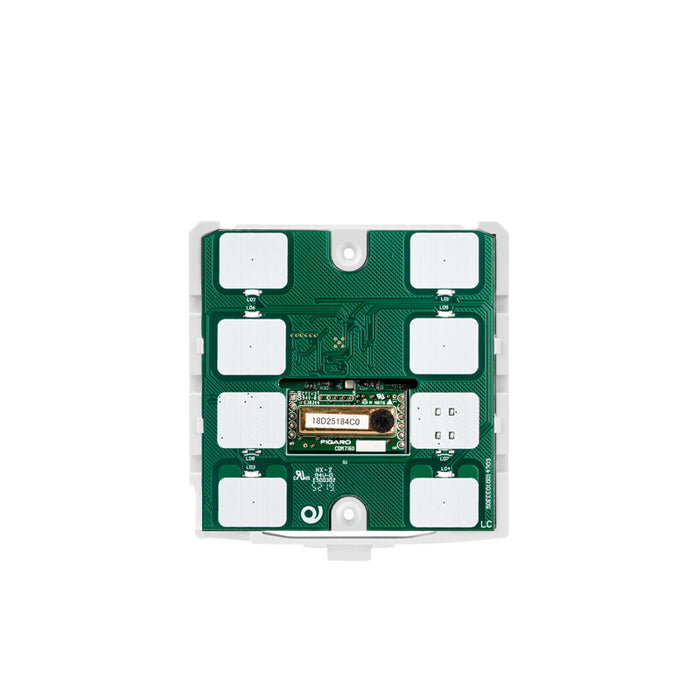

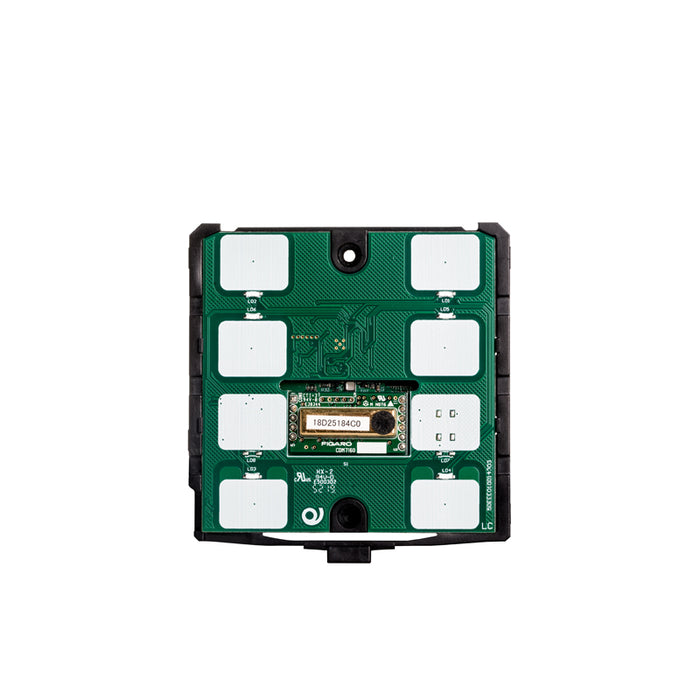

9025 Multi-sensor controller MC06A01KNX (CO2 - humidity - temperature)
Type: MC06A01KNX environment sensor is a 9025 series device, it is wall mounted and finished with white or black glass. The package contains both the front and back parts (controller + glass)
There are 3 sensors available in the device: temperature, humidity and CO2, this measurement is detected by an integrated probe specially designed to detect CO2 data directly and not by calculations based on other sensors.
The device is also equipped with a 2-way connector on the back, which can be configured as a digital or analog input; in fact, it is possible to connect an additional NTC probe to the device (eelectron code TS01A01ACC or TS01B01ACC - not included) to obtain a second temperature measurement.
The device includes 2 two-stage thermostats to control two different areas, both with an integrated PI controller to drive heating and cooling devices, valves, 6-way valves, 2 and 4-pipe fan coils, etc.;
The humidity sensor controls the reading of the relative humidity in the environment and enables threshold regulation with hysteresis of humidifying and dehumidifying devices.
6 capacitive keys are built into the device to manage on/off commands, dimmers, blinds and blinds, recall and store scenes, object sequences, local thermostat control, etc. It includes an RGB LED on the front to display the status (temperature, humidity and CO2) or other quantities available on the KNX bus.
The device is intended for use in a British box, a German box or an Italian box with 2 modules.
