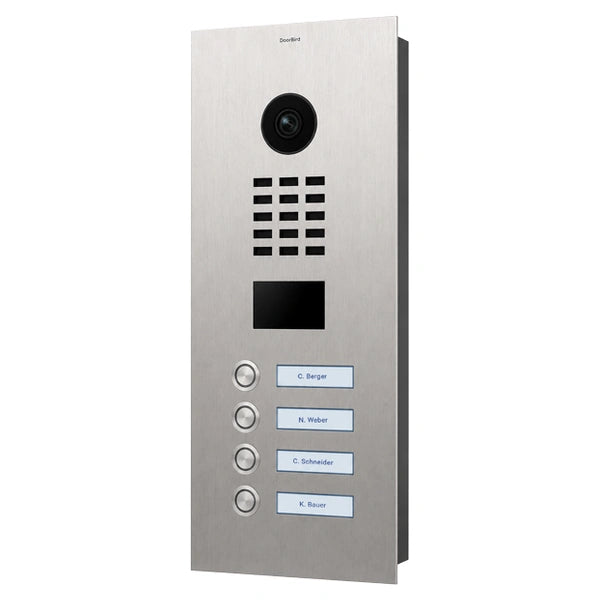

D2204V DNP IP video door station, 4 call buttons – flush-mounted
D2204V DNP IP video door station for multi-tenant and commercial buildings with 4 units. It has 4 separate call buttons with digital nameplates. Communicate with visitors and control access using a smartphone, tablet, DoorBird indoor station or compatible SIP phone.
The flush-mount housing is included.
DNP digital nameplates
Backlit nameplates can be updated remotely through DoorBird Webadmin. Changing a resident or company name does not require replacing a paper label.
Finish
Brushed V4A stainless steel, resistant to salt water and grinding dust.
Power supply
PoE+ IEEE 802.3at, Mode A/B. A compatible PoE+ switch or injector is required. DoorBird A1093 Gigabit High-PoE Injector is ordered separately.
Two-wire installation
Existing two-wire doorbell wiring can be used with the DoorBird A1072 2-wire Ethernet PoE+ Converter; a suitable PoE+ power source and space for the converter are required.
Protection and operating conditions
IP65, IK08 impact resistance. Operating temperature −25 to +55 °C.
5 MP camera with HDR and night vision
Field of view: 180° diagonal, 140° horizontal and 100° vertical. Automatic IR-cut filter and two infrared LEDs.
Two-way audio
Full-duplex communication with echo cancellation and noise reduction (AEC, ANR).
RFID and Bluetooth
125 kHz and 13.56 MHz RFID readers, management of up to 3,000 transponders. Bluetooth Low Energy for compatible DoorBird key fobs. Access permissions and schedules can be managed remotely.
4D motion sensor
Adjustable range from 1 to 10 m in 1 m steps, with individual actions triggered by motion.
Door and gate control
Two configurable bistable relays, each rated at max. 24 V AC/DC, 1 A. Two external inputs and a 12 V DC / 0.48 A power output for an electric door opener.
Integration
10/100 Base-T LAN, open API, SIP and RTSP. According to the datasheet, Wiegand, OSDP and RS485 are hardware-ready; activation is subject to a software update.
Video and visitor history
HD video is available on the local network; access via mobile data requires Cloud Pro. Visitor history with images is free, with optional video recording available through Cloud Pro.
More than 100 integration partners
KNX, Crestron, Control4, Loxone, Gira, Home Assistant, Nice, RTI, Homematic, Yale, Nuki, ASSA ABLOY Accentra/Access, Bang & Olufsen, AVM FRITZ!Fon, Synology, QNAP
Included in the box
Main electrical unit, front panel, corresponding mounting housing, RFID key fob, screwdriver, quickstart guide with Digital Passport, installation manual and small mounting parts.
Alternative mounting version: D2204V DNP – surface-mounted
Estimated delivery time: 3 - 4 weeks
