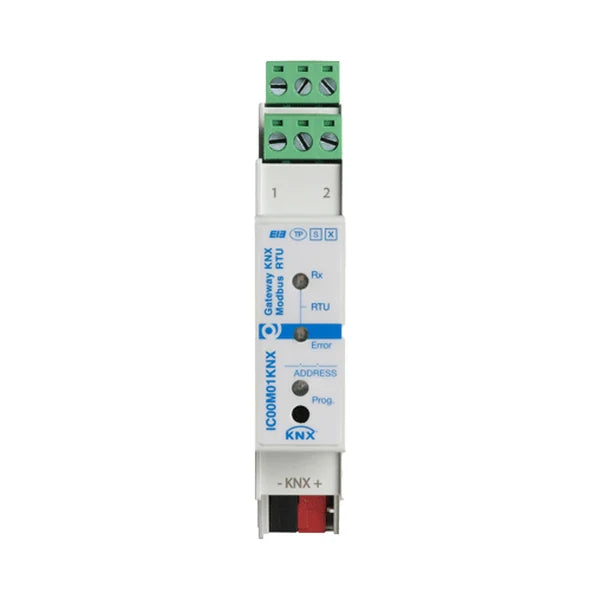

IC00M01KNX KNX Secure / Modbus RTU gateway 250 data points

Eelectron IC00M01KNX is a bidirectional gateway between KNX and Modbus RTU via RS485. It enables the transfer of up to 250 configurable data points and KNX Data Secure communication.

• Modbus client/master or server/slave mode.
• Alarm functions and value processing for individual channels; 50 logic blocks.
• Configuration using ETS; the KNX interface is integrated.
• Powered by the KNX bus at 21–32 V DC, maximum current consumption 15 mA.
• DIN rail mounting, width 1 module (18 mm); IP20.
