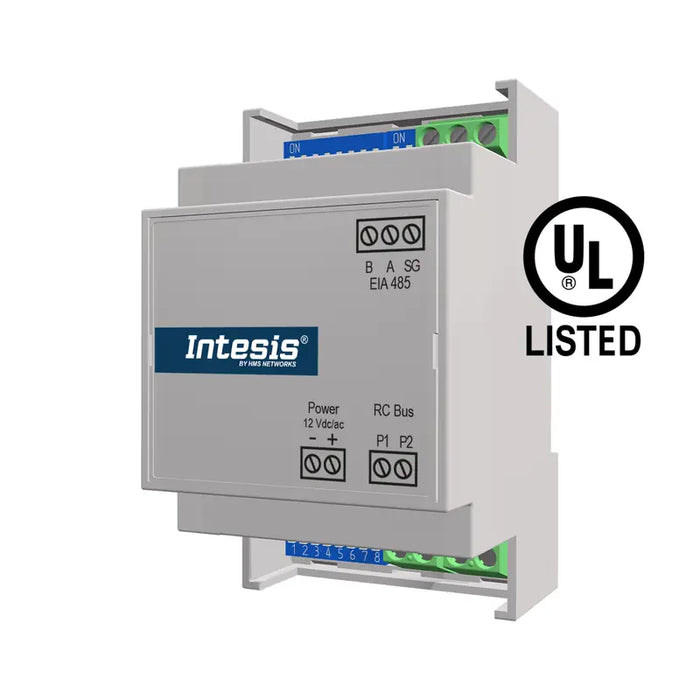

IN485DAI001R000 Air conditioning interface Daikin VRV and Sky - BACnet MS/TP and Modbus RTU

Intesis IN485DAI001R000 is a communication interface for integrating Daikin VRV and Sky into the system BACnet MS/TP and Modbus RTU. It enables control and monitoring of one indoor air conditioning unit.

Main features

• Supported supervisory system interface: BACnet MS/TP and Modbus RTU.
• Capacity: 1 indoor air conditioning unit.
• Configuration using DIP switches and the Modbus interface.
• Powered by the air conditioning unit without an external power supply.
• Operating data monitoring, operating hours counter and error indication.
• Window contact function for energy-saving operation via communication data.
• Simultaneous control via the supervisory system and the original air conditioning controller.
• Dimensions (width × height × depth): 53 × 93 × 58 mm.

Compatibility and installation

The interface is intended for supported models of the specified air conditioning series. Before ordering, check the specific model in the Intesis HVAC Compatibility Tool. Available functions depend on the connected air conditioning unit.

The supported BACnet MS/TP and Modbus RTU protocols are used according to the interface configuration.
