IN485MHI001R000 Air conditioning interface Mitsubishi Heavy Industries FD and VRF - BACnet MS/TP

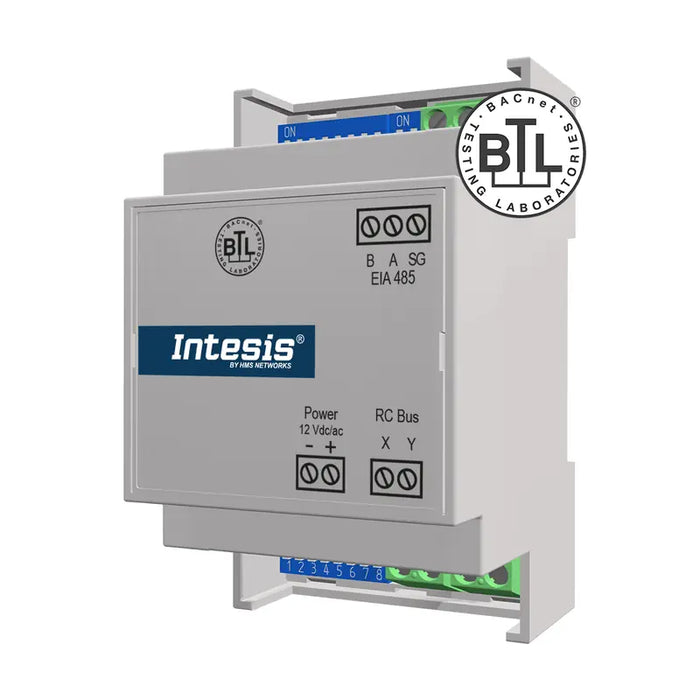

Intesis IN485MHI001R000 is a communication interface for integrating Mitsubishi Heavy Industries FD and VRF into the system BACnet MS/TP. It enables control and monitoring of one indoor air conditioning unit.

Main features

• Supported supervisory system interface: BACnet MS/TP.
• Capacity: 1 indoor air conditioning unit.
• Configuration using integrated DIP switches.
• Air conditioning data is available as predefined BACnet objects.
• Powered by the air conditioning unit without an external power supply.
• Operating data monitoring, operating hours counter and error indication.
• Occupancy function to adjust operation according to occupancy.
• Simultaneous control via the supervisory system and the original air conditioning controller.
• Dimensions (width × height × depth): 53 × 93 × 58 mm.

Compatibility and installation

The interface is intended for supported models of the specified air conditioning series. Before ordering, check the specific model in the Intesis HVAC Compatibility Tool. Available functions depend on the connected air conditioning unit.
