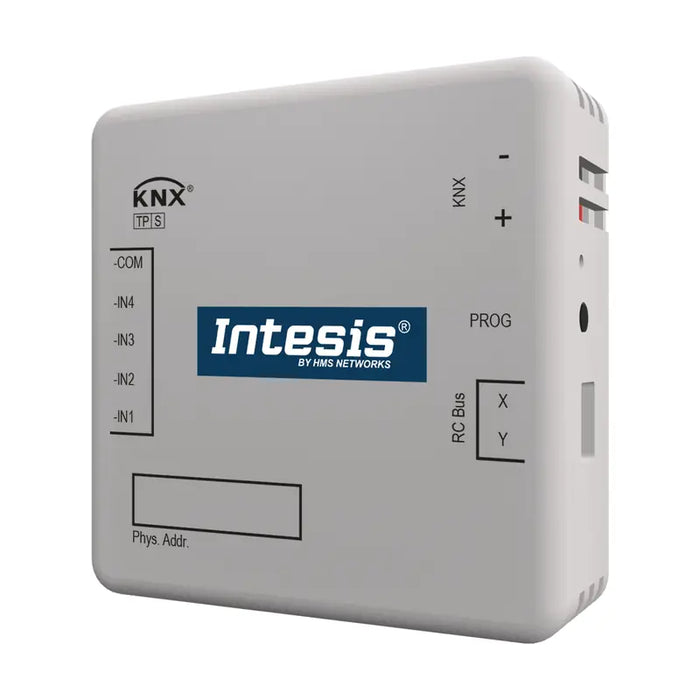

INKNXMHI001R000 Air conditioning interface Mitsubishi Heavy Industries FD and VRF - KNX

Intesis INKNXMHI001R000 is a communication interface for integrating Mitsubishi Heavy Industries FD and VRF into the system KNX. It enables control and monitoring of one indoor air conditioning unit.

Main features

• Supported supervisory system interface: KNX.
• Capacity: 1 indoor air conditioning unit.
• Configuration using the standard ETS tool.
• Energy-saving functions: Timeout, Open Window and Occupancy.
• Integration with KNX room thermostats.
• Store and recall up to 5 scenes via KNX.
• 4 potential-free binary inputs for connecting external contacts, such as window contacts or presence detectors.
• Simultaneous control via the supervisory system and the original air conditioning controller.
• Dimensions (width × height × depth): 71 × 71 × 27 mm.

Compatibility and installation

The interface is intended for supported models of the specified air conditioning series. Before ordering, check the specific model in the Intesis HVAC Compatibility Tool. Available functions depend on the connected air conditioning unit.
