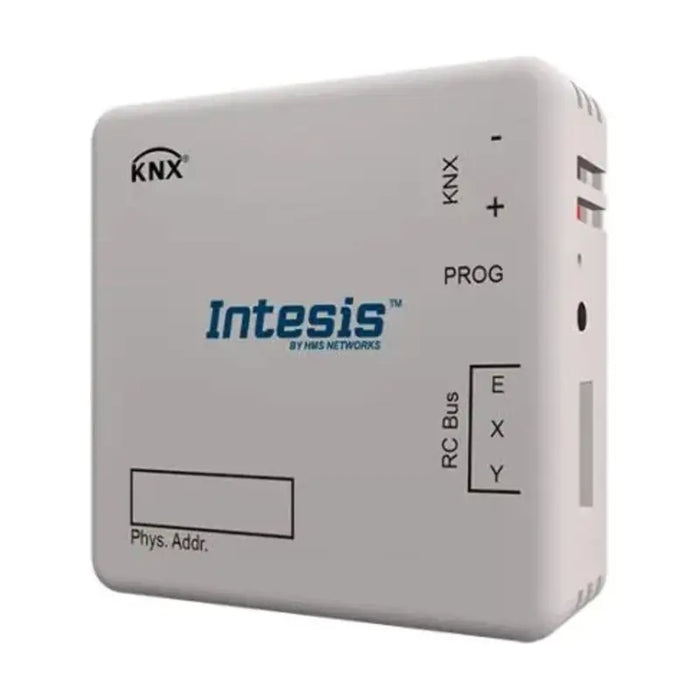

INKNXMID001I000 Midea air conditioning interface - KNX
Intesis INKNXMID001I000 is a compact communication interface designed for the integration of air conditioning systems Midea Commercial and VRF into intelligent buildings with the system KNX.
Gateway provides two-way communication between the Midea air conditioning unit and KNX, thanks to which the air conditioning can be controlled and monitored directly via the KNX system, KNX thermostats, buttons, touch panels or visualization.
The interface is designed for one indoor air conditioning unit and connects directly to its communication interface. Configuration is performed using a standard tool ETS.
EAN: 8436615510719
Main features
- Integration Midea Commercial and VRF air conditioning systems to KNX
- Two-way communication KNX ↔ Midea
- Support 1 air conditioning unit
- Direct connection to the indoor unit
- Configuration using ETS
- KNX certified device
- Compatibility with KNX thermostats
- Turning the air conditioner on and off
- Setting the desired temperature
- Selecting the operating mode
- Fan speed adjustment
- Adjusting the air flow direction
- Monitoring the current status of the air conditioning unit
- Monitoring internal air conditioning variables
- Error and error code indication
- Operating hour counter for maintenance and filter check
- Support up to 5 scenes
- Simultaneous control of air conditioning using KNX and the original remote control
- Feature support Open Window and Occupancy
- Possibility of temperature control from the air conditioning unit sensor or KNX thermostat
- Power supply directly from KNX buses, without the need for a separate power supply
- Compact dimensions allow easy installation even near or inside the air conditioning unit
Intesis INKNXMID001I000 – professional KNX interface for integrating one Midea Commercial or VRF air conditioning unit into a smart building.
