INKNXMIT001I200 Air conditioning interface Mitsubishi Electric Domestic, Mr. Slim, City Multi and Lossnay - KNX Data Secure

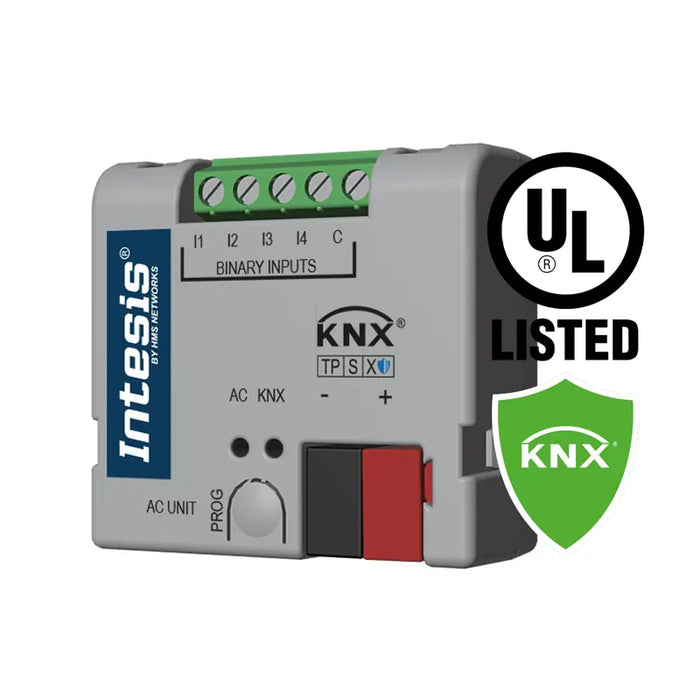

Intesis INKNXMIT001I200 is a communication interface for integrating Mitsubishi Electric Domestic, Mr. Slim, City Multi and Lossnay into the system KNX Data Secure. It enables control and monitoring of one indoor air conditioning unit.

Main features

• Supported supervisory system interface: KNX Data Secure.
• Capacity: 1 indoor air conditioning unit.
• Configuration using the standard ETS tool.
• Support for up to 10 configurable scenes.
• Certified KNX Data Secure communication.
• 4 potential-free binary inputs for connecting external contacts, such as window contacts or presence detectors.
• Dimensions (width × height × depth): 41 × 39 × 18 mm.

Compatibility and installation

The interface is intended for supported models of the specified air conditioning series. Before ordering, check the specific model in the Intesis HVAC Compatibility Tool. Available functions depend on the connected air conditioning unit.
