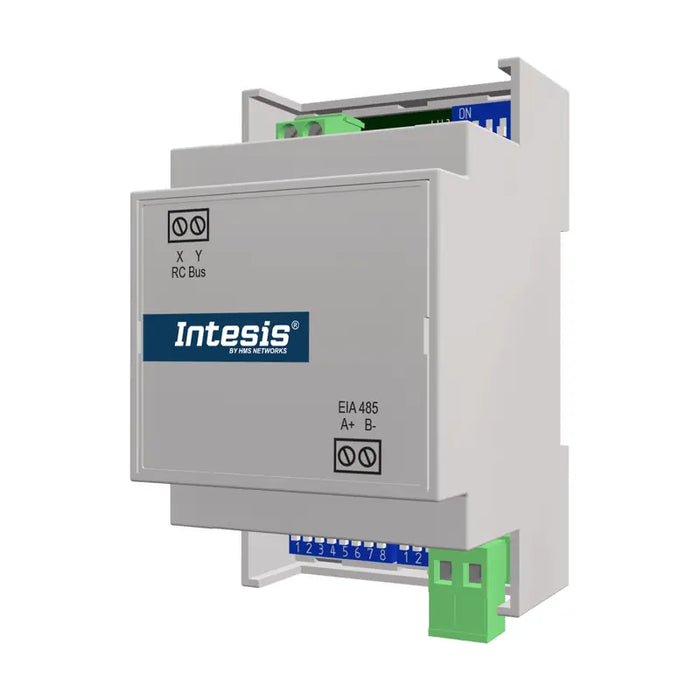

INMBSMHI001R000 Air conditioning interface Mitsubishi Heavy Industries FD and VRF - Modbus RTU

Intesis INMBSMHI001R000 is a communication interface for integrating Mitsubishi Heavy Industries FD and VRF into the system Modbus RTU. It enables control and monitoring of one indoor air conditioning unit.

Main features

• Supported supervisory system interface: Modbus RTU.
• Capacity: 1 indoor air conditioning unit.
• Configuration using DIP switches and the Modbus interface.
• Modbus RTU server functionality on the EIA-485 bus.
• Powered by the air conditioning unit without an external power supply.
• Operating data monitoring, operating hours counter and error indication.
• Window contact function for energy-saving operation via communication data.
• Simultaneous control via the supervisory system and the original air conditioning controller.
• Dimensions (width × height × depth): 53 × 93 × 58 mm.

Compatibility and installation

The interface is intended for supported models of the specified air conditioning series. Before ordering, check the specific model in the Intesis HVAC Compatibility Tool. Available functions depend on the connected air conditioning unit.
