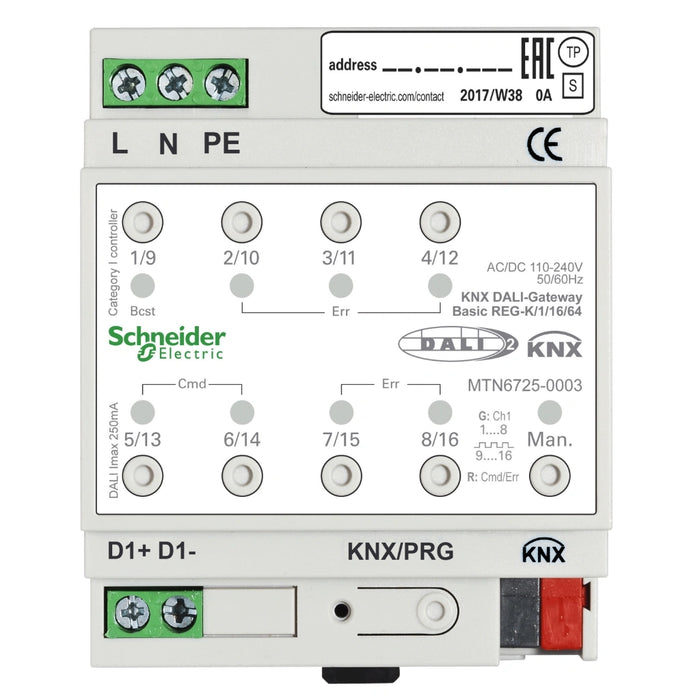

MTN6725-0003 DALI-Gateway Basic 1-output

Schneider Electric MTN6725-0003 KNX DALI-Gateway Basic 1ch/16/64 - 1 channel

EAN: 3606489484040

Supply voltage: AC / DC 100-240V, 50 / 60Hz

Output: 1x DALI D+, D-, DC16-18 V (basic insulation, without SELV), max.250mA, short-circuit proof

Interfaces: KNX, DALI

Type: DALI control device category I (single master)

Degree of protection: IP20

Construction: DIN rail

The KNX DALI gateway connects the KNX bus with 1 DALI output. The gateway is a DALI category I control device with integrated DALI power supply for electronic ballasts.
Up to 64 electronic ballasts can be switched and dimmed in 16 groups and controlled via 16 scenes. In addition, various color commands (such as white tone control, RGB, XY and HSV) can be interpreted, for example, from KNX buttons and DALI DT8 lights can be controlled accordingly. The operating hours record records the operating hours of the groups. Error messages from individual ECGs and groups can be sent and visualized via KNX. The color control module allows up to 16 time-based brightness and color controls on a weekly basis, provided that the device is connected to time synchronization. Up to 16 time programs with up to 300 commands to the DALI output can be activated or deactivated via KNX objects.
Commissioning and configuration of DALI, group assignment and scene setting can be done using the ETS app and the ETS app. (DCA). S integrated bus coupler. The bus is connected via a bus terminal, a data bus is not required.

KNX software features:
- Switching, dimming, value and color objects per group, as well as switching, value and color objects for broadcast control
- Staircase lighting function with dimmed lights and advance warning, operating modes normal, continuous, night and panic operation
- Differentiated error analysis by ECG and group
- Scenes with brightness and color
- Energy saving possible by reducing standby losses of electronic ballasts using an additional KNX switch
- Using the color control module, it is possible to control brightness and colors based on a weekly timer. (Requirement: synchronization of day of week and time) Time transitions of up to 90 s are also possible
- Up to 16 time programs can be controlled via KNX objects
- Operating hours can be recorded for each group, reset and sent as an alarm when a limit value is exceeded
