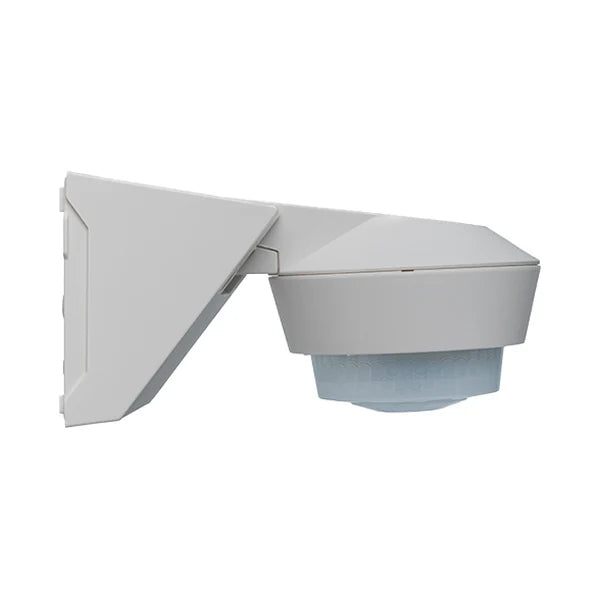

PD00F01KNX KNX outdoor PIR motion detector PARKING

Eelectron PD00F01KNX is an outdoor PIR motion detector for KNX with ambient brightness measurement. It enables automatic lighting control and provides motion information for HVAC and alarm functions.

• 5 communication channels: 2 for lighting, 2 for HVAC and 1 for alarms.
• 360° detection, range up to 32 m in diameter at a mounting height of 2.5 m; sensitivity adjustable in 4 levels.
• Brightness measurement 10–2,000 lx; automatic and semi-automatic modes, Master/Slave and test mode.
• IP55 when wall-mounted; IP54 when ceiling-mounted.
• KNX power supply 21–30 V DC; approximately 10 mA during operation and 5 mA in standby.
• White plastic housing; 3 masks for limiting the detection area are included.
