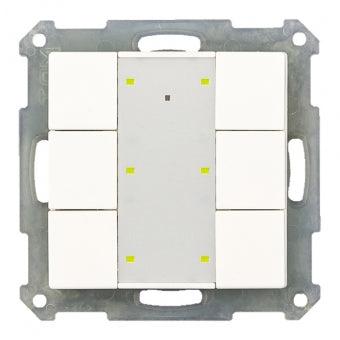

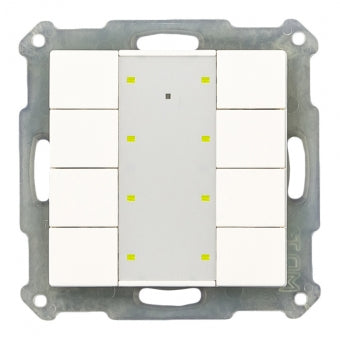

RF-TA55Ax.01 KNX RF Button 2/4/6/8-fold, pure white glossy - 2x/10A

Type: MDT RF-TA55Ax.01 KNX RF Button 2/4/6/8-fold, pure white glossy - 2x/10A

Version with LED for operation, status display and
orientation light. Current max. 10 A with resistive load, 10 A with 21 µF / 3 ECG

- Commissioning with ETS5
- Bidirectional KNX RF communication in system mode
- Compatible with program switching with 55 mm button
- The buttons can be freely configured as a pair of buttons or as separate buttons
- Normally open or normally closed, button press length adjustable
- Adjustable value sending, priority control and switching commands
- Control with short / long key presses and 2 subjects
- One and two button control for dimming / blinds functions
- Operation as a 2-way switch or 1-way blind control
- Connection via MDT KNX RF radio coupler (RF-LK001.02)
- Central writing pad with cover foil for individual description
- As a replacement for standard series switches
- For retrofitting without laying bus cables
- Power supply 230 V AC
- Installation using the supplied support ring

NOTE: The MDT RF-TA55A2.01 KNX RF switch CANNOT be combined with the MDT frame!

Rámik (nie je súčasťou balenia) - vhodné pre 55mm spínacie programy napr.: Berker B.7 glass polar white, B.3 alu polar white, S.1 polar white, B.1 polar white matt, B.7 glass alu, S.1 polar white matt Gira Standard 55 pure white satin matt, E2 pure white satin matt, Esprit glass mint Esprit glass white, Event Alu, Gira Event pure white matt Merten M-Smart polar white brilliant, M-Plan polar white classy matt M-Arc polar white classy matt, Atelier-M polar white M-Plan Real glass brilliant white, M-Smart polar white Jung AS500 alpine white, A500 alpine white, A500 alpine white Aplus Alu, A500 Alu

Link to manufacturer information
