SO0xL02KNX OL-U KNX SWITCH – Lite Version
Typ: eelectron SO0xL02KNX OL-U KNX SWITCH – Lite Version
- with temperature sensor

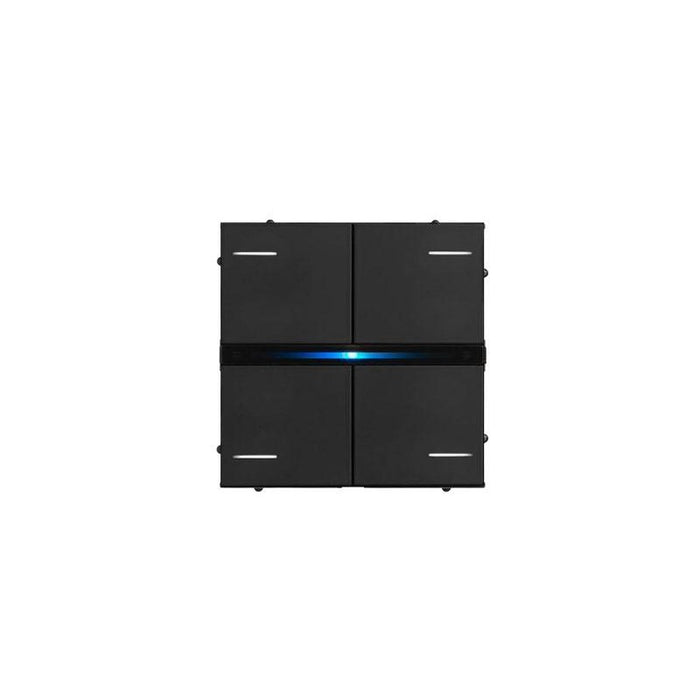

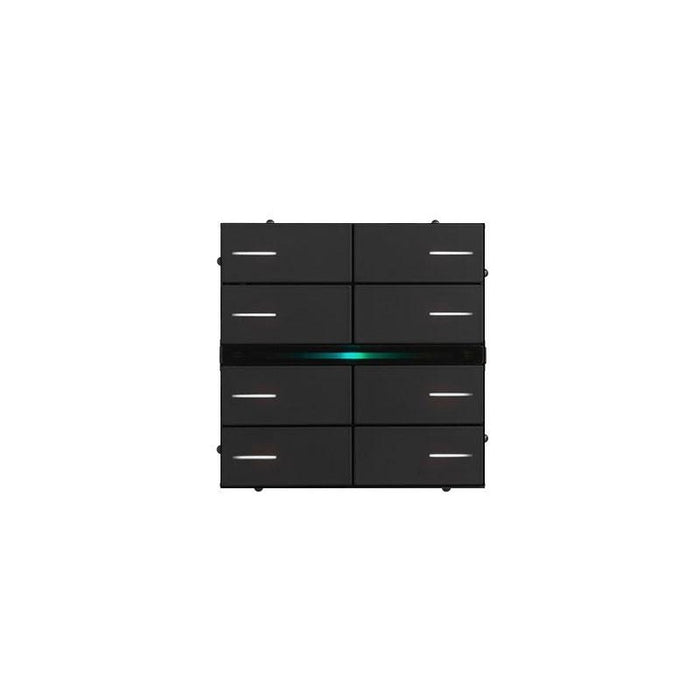

Switch SO08L02KNX from the OL-U KNX series is equipped with up to 8 mechanical buttons (16 channels) and SO04L02KNX is equipped with 4 mechanical buttons (8 channels) to control on/off, dimming, roller shutters and blinds commands or other programmable command and control functions. The device can be configured via the ETS application program and can communicate with the KNX Data Secure protocol.
The device integrates one 2-stage thermostat to control two different areas, both with integrated PI controller for controlling heating, cooling, valves, 6-way valves, 2 and 4 pipe fan coils.
A freely configurable RGB LED strip is also available to display statuses or other quantities available on the KNX bus. In addition, 32 logic blocks are available to implement simple expressions with logical or threshold operators or complex expressions with algebraic and conditional operators. Predefined algorithms such as proportional temperature and humidity control or dew point calculation can be used.
The device also integrates "virtual holder logic"; the application area is a hotel room: using a magnetic sensor installed on the door and connected to a digital input, accurate presence information is managed. The presence detection solution can deduce the presence of people in the room using one or more dedicated sensors. It also records unexpected presence and can distinguish multiple behaviors.
Available in black and white.
Package includes: hardware with buttons + frame

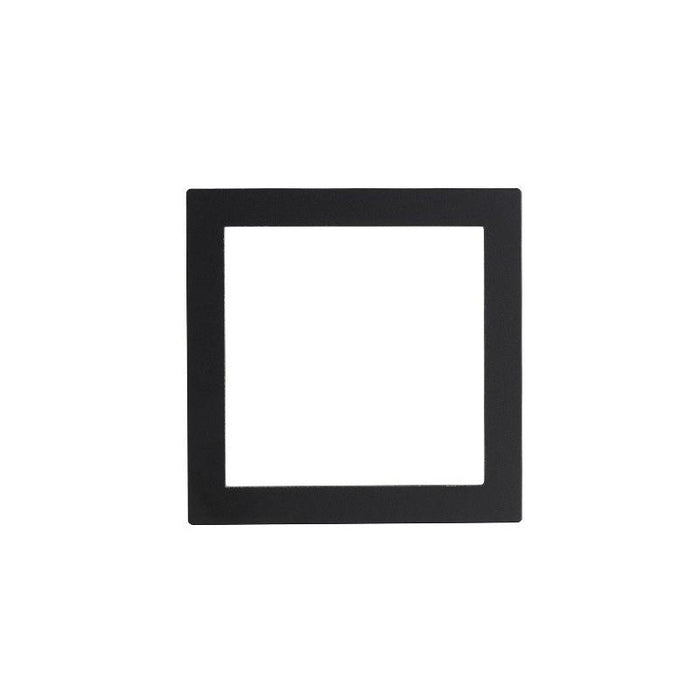

Black version: SO08L02KNX-3 / SO04L02KNX-3 (hardware with buttons) + PO71A01RP-3 (PLASTIC - frame)

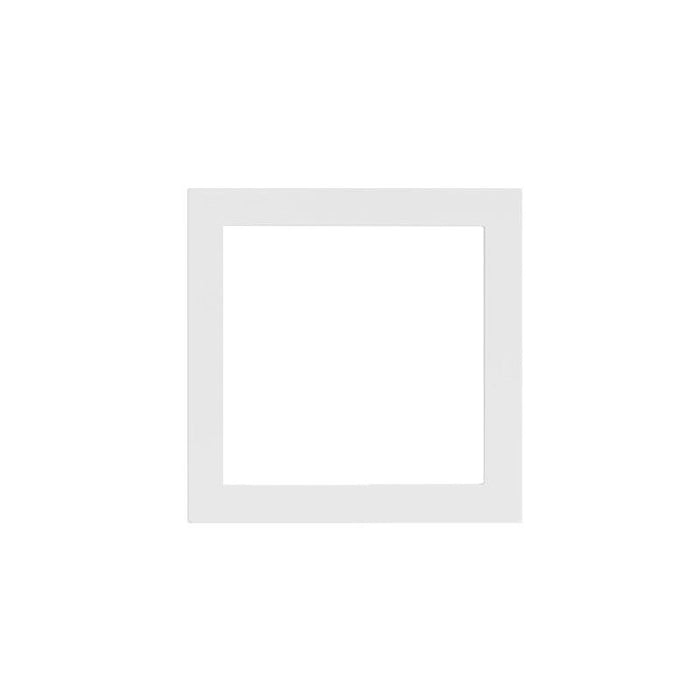

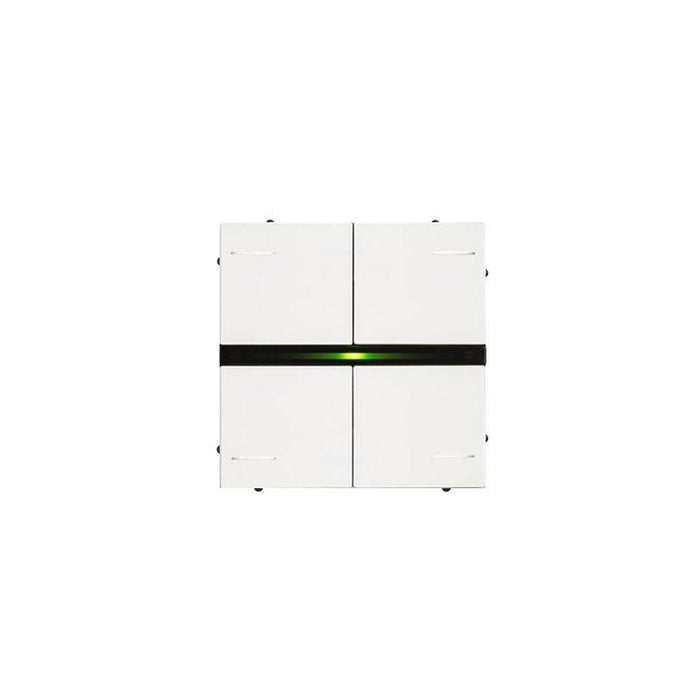

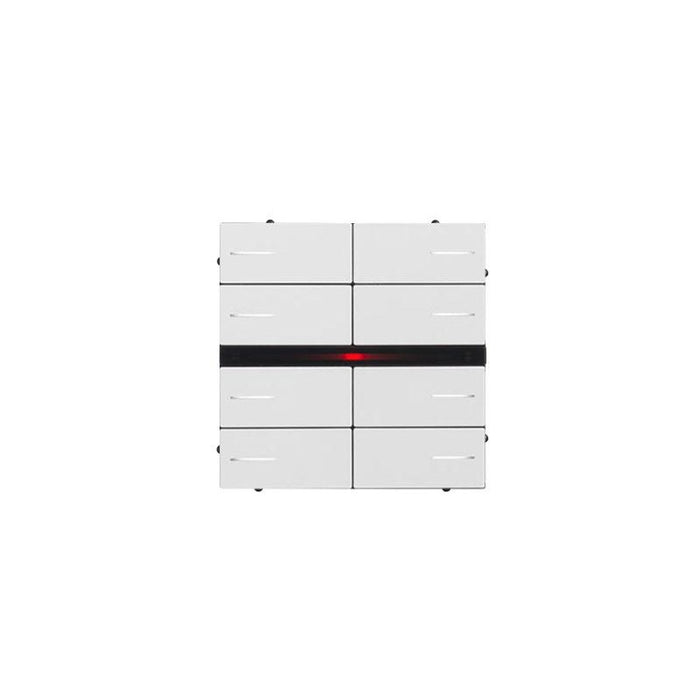

White version: SO08L02KNX-1 / SO04L02KNX-1 (hardware with buttons) + PO71A01RP-1 (PLASTIC - frame)
Link to manufacturer information
The price and possibility of purchasing a product from the eelectron brand will be displayed after logging in.
Estimated delivery time: 2 - 4 weeks (depends on quantity, contact us for more information) please contact)
