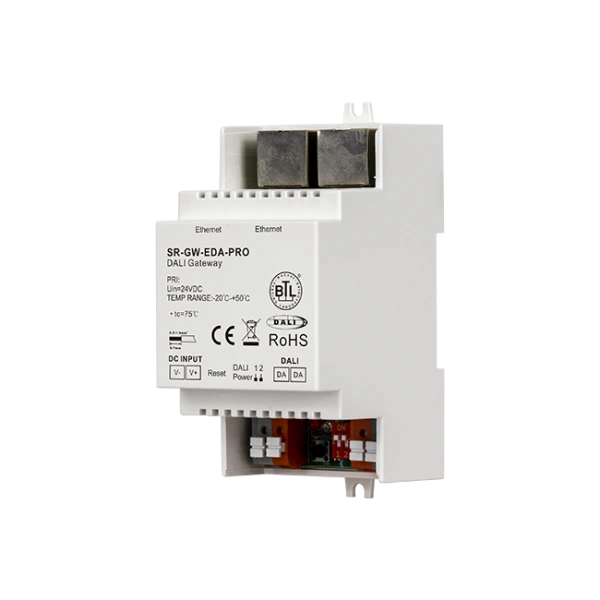

SR-GW-EDA-PRO Ethernet DALI gateway with BACnet/IP and MQTT

Sunricher SR-GW-EDA-PRO is a professional Ethernet DALI gateway designed to configure, manage and integrate DALI lighting into superior building automation systems. Thanks to the support of communication protocols BACnet/IP and MQTT enables the connection of the DALI system with building management systems (BMS) and other compatible control platforms via a computer network.

The gate contains an integrated DALI master controller and one DALI channel with support for up to 64 DALI ballasts. Supports devices DT6 and DT8, including Tunable White (Tc) color temperature control and XY and RGBWA color lighting. Configuration of DALI devices, groups, scenes and time tasks is done using software DALI Center.

Through RJ45 Ethernet interface the device can be connected to the local network and configuration and management of the DALI system can be carried out remotely. BACnet/IP support enables integration into compatible BMS systems, while MQTT provides communication options with other automation platforms.

SR-GW-EDA-PRO has an integrated DALI power supply with a maximum current of 250 mA and a guaranteed current of 230 mA. The power supply of the DALI bus can be turned off and, if necessary, an external DALI power supply can be used.

Integrated real time clock (RTC) with a backup battery, they enable the automatic execution of timed tasks. The gateway also supports DALI communication monitoring, which facilitates the diagnosis and management of the lighting system.

The device is intended for mounting on DIN rail and requires external power 24 V DC. It is suitable for office buildings, hotels, commercial buildings and other professional installations with a requirement to integrate DALI lighting into the IP infrastructure.

Main features

• Professional Ethernet DALI gateway with RJ45 interface

• BACnet/IP and MQTT protocol support

• Integration of DALI lighting into BMS and other compatible control systems

• Integrated DALI master controller

• One DALI channel with support for up to 64 DALI ballasts

• Support for DALI devices DT6 and DT8 (Tc, XY, RGBWA)

• Addressing of DALI ballasts and configuration of groups and scenes

• Configuration and management via DALI Center software

• Remote management of the DALI system via a local Ethernet network

• Integrated DALI power supply 250 mA (guaranteed 230 mA)

• Possibility to turn off the integrated power supply of the DALI bus

• Monitoring of DALI communication for diagnostic purposes

• Integrated Real Time Clock (RTC) with battery backup

• Support for timed tasks

• External power supply 24 V DC

• Mounting on a DIN rail

• Dimensions 110 × 53 × 65 mm

• Operating temperature −20 to +50 °C

• Degree of protection IP20
