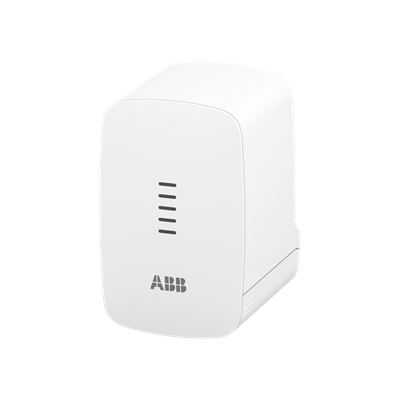

ST/K1.2 Electromotive valve actuator

ABB ST/K1.2 Electromotoric valve actuator

EAN: 4053546160185

ID: 2CDG120092R0011

Power: 0.35W

The electromotive valve actuator KNX ST/K1.2 provides precise control of heating and cooling valves and ensures secure communication via KNX Data Secure. It is equipped with an integrated temperature sensor and an integrated room temperature controller. It provides a high actuation force of up to 220 N and a maximum valve stroke of 8 mm. It has 2 universal binary inputs with the option of connecting such as window contacts, presence detectors and buttons. The second input also supports external temperature sensors. In addition, the actuator features automatic valve adaptation and is compatible with a wide range of valve adapters, making it universally applicable. 2 adapters for the most common valves are supplied (M30x1.5 and Danfoss RA -VA 10 and VA 100-). A bus coupling module is integrated. The device can be used in a heating circuit distributor. The actual valve position can be indicated by 5 LEDs.

Link to manufacturer information
